Compare 7 Carvers Side-by-Side

We compare 7 carvers side-by-side

Here is a roundup of 7 carvers currently on the market. The photo below shows all 7 side-by-side so you can see how they compare. Let’s check each of them out with our test equipment.
Note: The Vortex XJ7 below was upgraded in 2016 and renamed to the Vortex F5 with a New Autochuck Collet/Cam System, Higher Speed & Torque, Ceramic Bearings, No Plunger, Integrated Hosebarb, etc. The Vortex F5 can be seen here.
Vortex F5 Plus
Vortex F5 Plus

Table of Contents

Compare 7 carvers side-by-side

From left to right: SCM Original Power Carver (entry level), SCM Power Carver (entry level), Shofu Lab Air-Z (rebranded SCM Power Carver 400xs), Powercrafter, NSK Presto, Unbridled Vortex XJ7, Turbo Carver.

Lets start our comparison by watching two unbiased videos by Roger Wolford

Carving on Wood, by Roger Wolford

Engraving Glass, by Roger Wolford

What is common with all the carver? The cutting bur.

When it comes to selecting a high speed carver, how do you decide which one to purchase? You start with the business end, the cutting bur. This is the first criteria you need to examine. The bur is the part that does the cutting and they all have one thing in common, the shaft diameter is 1/16 of an inch or 1.6mm. This size bur is commonly know as a Friction Grip bur of FG for short. All the carver use the FG size bur. The actual cutting head is attached to the shaft and comes in many different shapes and sized. Only high quality burs should be used for carving. Most burs are rated for 360,000 – 500,000 RPM. The speed of the tool must be run lower than the bur’s maximum RPM rating or you risk injury. If you run the tool faster than the bur’s rated speed, the bur could disintegrate causing injury.

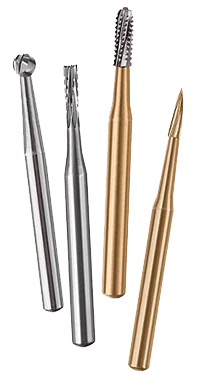

carbide-burs-200

Power or RPM?

rpm

The answer is both. Like an automobile engine measured in horsepower and torque, we measure carvers in Watts instead. This is where RPM (how fast the bur is spinning) comes into play. If you have low RPM and high torque, you will have low power carver. Likewise, high RPM and low torque will get you a low power carver. What is best is high torque and high RPM to give you a high powered carver.

Carvers range from just a couple of watts of power up to 20 watts. A good rule of thumb is to look at the maximum RPM and the amount of air consumed. Higher RPM and more air consumed usually means higher power (Watts).

What is the "Sweet Spot "?

All carvers have something called the “Sweet Spot.” It is well known as you go faster in RPM, power output goes down. What happens when you start carving and press the bur against your work, the RPM will start to go down but something interesting happens. The cutting power starts to go up until you reach a point where no more increase in power is realized. This is the referred to as the “sweet spot”. Most carvers reach their maximum power a 1/2 their RPM. So, a 400,000 RPM carver reaches maximum power at 200,000 RPM.
Sweet Spot vs RPM vs Power

Air Pressure & Turbine Bearings

Is there an ideal air pressure to run a carver? Carvers running at lower air pressure lack enough power to cut. At higher pressures, the RPM will be great, but the life of the turbine is compromised and short lived. Permanently lubricated bearings are designed last 1,000 to 2,000 hours with a maximum air pressure of 38 PSI. Higher pressures of 45 PSI or more are reserved for wet bearings, meaning they require a drop of oil every 20 minutes to an hour of use. Ideally, a carver requiring an air pressure of 30-38 PSI is a good range for carving.

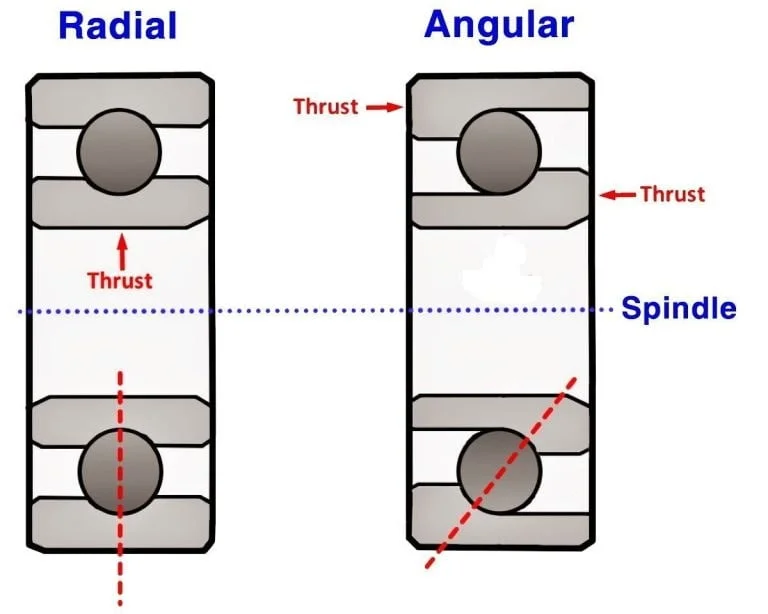

Bearing Diagram

An interesting side effect when carving is the ability of the bearings to handle lateral loading. This is the ability for the bearings to handle the sideways cutting when carving. Since carving is not the same as drilling, most of the force the bearings see is sideways and not downwards. Small diameter bearings have a high failure rate, while large diameter bearings are able to take the load much better. Carvers are designed using two bearings holding something called a “spindle”.

The spindle holds the bur in place as you carve. If the bearings on the spindle are close to each other, they cannot handle the lateral force, the sideways carving. Bearings spaced further apart on the spindle, not spindle length, are much better for obtaining a longer bearing life. Ideally, radial bearings giving more stability with lateral pressure from carving on the side of the bur. Carvers with a plunger usually use angular bearings because the burs are inserted into the spindle by pressing down vertically on a hard surface.

Time to check out the carvers

Test Equipment

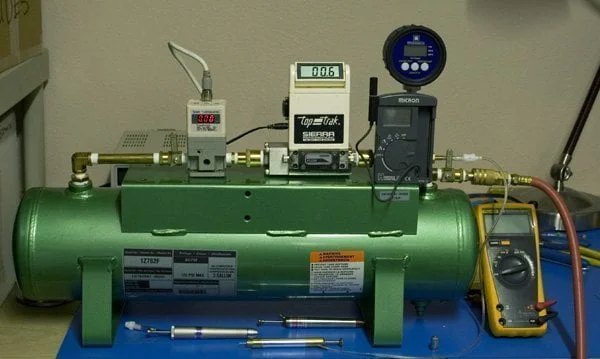

Test Jig for measuring high speed carvers

Full disclosure, Unbridled have sold Turbo Carvers, Powercrafters and Power Carvers for many years, but elected to discontinue their product lines. We discontinued selling the Turbo Carver brand due to poor reliability. The Powercrafter brand went out of business. We discontinued the SCM Power Carver line due to turbine failures and lack of quality.

Specifications

  • Accumulator Air Tank, 3 Gallon
  • Pressure Regulator, SMC ITV2030, 0.005-0.5 MPa (0-72.5 PSI), 0-5 Volts
  • Volumetric Flow Rate, Mass Flow Meter, Sierra Instruments, 0-5 Volts, 0-70 SLM
  • Pressure Gauge measured at carver, SSI Technologies, 0-100PSI, 1.0% Full Scale
  • Tachometer, Micron, HPW-2, 5,000-999,000 RPM, 1-200KHz
  • Torque and Power, Stall Torque Method, Diameter 1.62 mm, Pressure 0.25 MPa (36 PSI)
  • Noise/Loudness, Digital Sound Level Meter, 30-130dBA, 32-8.5KHz, 18 inches

Weights and Measures

The carvers were put on graph paper with ¼ inch scale squares along with a rule for accurate length measurements. Widths of the carvers are easily estimated by the scale squares. Weights were measured using an Acculab V-3000 laboratory scale with a readability of 1 gram. A video below the photo shows the weigh in.
All carver weights and sizes
From top to bottom: SCM Original Power Carver (entry level), SCM Power Carver (entry level), Shofu Lab Air-Z (rebranded SCM Power Carver 400xs), Powercrafter, NSK Presto, Unbridled Vortex XJ7, Turbo Carver.

The Weigh-in

We set the scale to weigh in grams. Since we are used to ounces in the United States, there is math involved. So we we did the math for you in the “Test Results” section below. If you are nerdy, take grams divided by 28.35.

Order of weigh in: SCM Original Power Carver (entry level), SCM Power Carver (entry level), Shofu Lab Air-Z (rebranded SCM Power Carver 400xs), Powercrafter, NSK Presto, Unbridled Vortex XJ7, Turbo Carver. The newer Vortex F5 is shown in the video below.

Loudness Measurements

For this test, we use dB(A) Digital Sound Level Meter, 30-130dBA, 32-8.5KHz at a distance of 18 inches. This is about the distance your ears will be from the carver while carving. The meter was placed next to the artist’s ear and the tool was run for a few seconds to get a stable reading. The measurement scaled was A-weighted. A-weighting is the most commonly used of a family of curves defined in the International standard IEC 61672:2003 and various national standards relating to the measurement of sound pressure level. A-weighting is applied to instrument-measured sound levels in an effort to account for the relative loudness perceived by the human ear, as the ear is less sensitive to low audio frequencies. It is employed by arithmetically adding a table of values, listed by octave or third-octave bands, to the measured sound pressure levels in dB.

The Decibel Loudness Comparison Chart provides some interesting numbers to help you understand the volume levels across various sources and the affect on hearing.

Environmental Noise

  • 30dB Whisper Quiet Library at 6'
  • 65dB Normal Conversation at 3'
  • 80dBTelephone Dial Tone
  • 85dB OSHS Max Safe Level
  • 95dB Hearing Loss Begins
  • 95dB Jackhammer at 50'
  • 98dB Hand Drill
  • 107dB Lawn Mower
  • 115 dB Rock Concert
  • 125db Pain Begins
  • 140dB Permanent Hearing Loss
  • 140db Jet Engine at 100'

Video of Testing Process

Each carver was tested for sound pressure in dB(A) (loudness) at the manufacturer’s maximum air pressure. There is a digital air pressure gauge in the upper left of the video showing the air pressure entering the tool. After the dB(A) measurement is captured, a few seconds of carving was done to see if the loudness changed.

Mass Air Flow Measurements

Each carver have their air flow measured at the manufacturer’s specified maximum air pressure. The more air flow (larger number on the mass flow meter), the higher the power the carver is capable of producing. Carvers measured: SCM Power Carver (entry level), Shofu Lab Air-Z (rebranded SCM Power Carver 400xs), Powercrafter, NSK Presto, Unbridled Vortex XJ7, Turbo Carver.

Equipment used for measurements were “Accumulator Air Tank, 3 Gallon”, “Pressure Regulator, SMC ITV2030, 0.005-0.5 MPa (0-72.5 PSI), 0-5 Volts”, “Volumetric Flow Rate, Mass Flow Meter, Sierra Instruments, 0-5 Volts, 0-70 SLM”.

Nerdy math stuff again. We measured the pressure in Megapascal and air consumption in Liters per minute; say what? We know what you are thinking; just use good old American terms like PSI and CFM. You got it. No Nerdy Math. The video shows the results in American measurements!

Test Results: Vortex F5 vs Power Carver vs Turbo Carver

Tried & Tested
  • Max Pressure1
  • CFM/Lpm2
  • RPM
  • Loudness – dB(A) 18″
  • Weight
  • Carver Length
  • Spindle Length
  • Bearing Spacing
  • Bearing Diameter
  • Impeller Diameter
  • Turbine Replacement6
  • F/F/F/Q/Score4
  • Warranty5
  • Street Price6
Check this out 🠊 🠊 🠊
Vortex F5 icon
Vortex F5
  • 38psi, 2.6bar
  • 1.42/40
  • 400,000 @ 35psi
  • 83
  • 1.8oz / 52g
  • 4.5″
  • 14.9mm
  • 10.8mm
  • 6.4mm
  • 8.7mm
  • $50/$1353
  • 5/5/5/5/20
  • Lifetime
  • $43995
Vortex F5
Power Carver icon
SCM Power Carver
  • 37psi, 2.55bar
  • 1.67/47.2
  • 304,000 @ 37psi
  • 81.9
  • 3.3oz / 94g
  • 6.0″
  • 20.2mm
  • 12.0mm
  • 8.0mm
  • 8.8mm
  • $175
  • 3/2/3/2/10
  • Lifetime
  • $499 (400xs $550)
Power Carver
Turbo Carver icon
Turbo Carver
  • 45psi, 3.10bar
  • 1.36/38.5
  • 387.000 @ 45psi
  • 96.3
  • 0.6oz / 16g
  • 4.0″
  • 11.5mm
  • 9.6mm
  • 6.3mm
  • 7.6mm
  • Unknown
  • 1/2/2/1/6
  • 6 Months
  • $325
Turbo Carver

Test Results: Vortex F5 vs NSK Presto vs Shofu Lab Air-Z

Tried & Tested
  • Max Pressure1
  • CFM/Lpm2
  • RPM
  • Loudness – dB(A) 18″
  • Weight
  • Carver Length
  • Spindle Length
  • Bearing Spacing
  • Bearing Diameter
  • Impeller Diameter
  • Turbine Replacement6
  • F/F/F/Q/Score4
  • Warranty5
  • Street Price6
Check this out 🠊 🠊 🠊
Vortex F5 icon
Vortex F5
  • 38psi, 2.6bar
  • 1.42/40
  • 400,000 @ 35psi
  • 83
  • 1.8oz / 52g
  • 4.5″
  • 14.9mm
  • 10.8mm
  • 6.4mm
  • 8.7mm
  • $50/$1353
  • 5/5/5/5/20
  • Lifetime
  • $43995
Vortex F5
presto
NSK Presto
  • 36psi, 2.48bar
  • 1.48/42
  • 324,000 @ 36psi
  • 77.2
  • 2.5oz / 70g
  • 5.25″
  • 18.7mm
  • 13.8mm
  • 6.4mm
  • 10.8mm
  • $186
  • 3/4/4/5/16
  • 90 Days
  • $550 (GSR $850)
NSK Presto
Shofu icon
Shofu Lab Air-Z
  • 36psi, 2.48bar
  • 1.17/33.1
  • 329.000 @ 36psi
  • 87.7
  • 3oz / 83g
  • 5.5″
  • 18.5mm
  • 12.1mm
  • 6.8mm
  • 8.5mm
  • $245
  • 4/4/3/4/15
  • 90 Days
  • $498-$594
Shofu Lab Air-Z

Test Results: Vortex F5 vs Vortex XJ7 vs Powercrafter

Tried & Tested
  • Max Pressure1
  • CFM/Lpm2
  • RPM
  • Loudness – dB(A) 18″
  • Weight
  • Carver Length
  • Spindle Length
  • Bearing Spacing
  • Bearing Diameter
  • Impeller Diameter
  • Turbine Replacement6
  • F/F/F/Q/Score4
  • Warranty5
  • Street Price6
Check this out 🠊 🠊 🠊
Vortex F5 icon
Vortex F5
  • 38psi, 2.6bar
  • 1.42/40
  • 400,000 @ 35psi
  • 83
  • 1.8oz / 52g
  • 4.5″
  • 14.9mm
  • 10.8mm
  • 6.4mm
  • 8.7mm
  • $50/$1353
  • 5/5/5/5/20
  • Lifetime
  • $43995
Vortex F5
Vortex XJ7 icon
Vortex XJ7
  • 38psi, 2.62bar
  • 2.01/57
  • 333,000 @ 38psi
  • 79.6
  • 1.4oz / 40
  • 4.25″
  • 16.5mm
  • 14.0mm
  • 8.0mm
  • 11.2mm
  • N/A
  • 5/4/5/5/19
  • Lifetime
  • Discontinued
Vortex XJ7
Powercarver icon
Powercrafter
  • 45psi, 3.10bar
  • 1.17/33.1
  • 284,000 @ 45psi
  • 87.2
  • 2.2oz / 61g
  • 5.6″
  • 20.2mm
  • 17.2mm
  • 8.0mm
  • 7.5mm
  • $99 – $130
  • 4/2/4/4/14
  • 1 Year
  • $299 NOS7
Powercrafter

Footnotes for Test Results

  1. Max PSI/Bar is the recommend air pressure supplied to the carver per the manufacturer’s specifications. If you watched the video for air flow measurements, the pressure displayed on the digital pressure regulator is in megapascals (MPa).
  2. CFM/Lpm is a measure of how much air is flowing through the turbine. If you watched the video for air flow measurements, the digital mass flow meter displays in liters per minute (Lpm).
  3. Turbine rebuild price / New nosecone assembly with new turbine.
  4. Larger number is better – F3Q is a qualitative score for Form, Fit, Function and Quality. A perfect score would be 20.
  5. Turbine may not be covered or limited by the warranty.
  6. Prices were determined by Google searching and prior pricing sheets.
  7. New old stock. Limited supply.

Vortex F5 Test Carving

Internals of Power Carver, Powercrafter, Turbo Carver

Power Carver, PowerCrafter, Turbo Carver showing the inside and turbines

All trademarks and brands are the property of their respective owners.

*Free Shipping Lower 48 states

On most orders over $100

†Easy 30 day return policy

Shipping not included

‡Same day shipping by 2PM

For items in stock

100% Secure Checkout

PayPal / AmazonPay / Visa MC

Vortex F5 Ultra High Speed Carver

Vortex F5 Plus

In late 2009, research and development of a Vortex carver was begun. Debbi LerMond, a lifelong sculptor, had a list of requirements for the design engineers to meet. Debbi’s carver was going to be designed for carving, not a dental procedure tool repurposed for carving. After 7 years of hard work, Debbi got her perfect carver and named it the Vortex F5.

SCORE: Form=5, Fit=5, Function=5, Quality=5, Total=20 out of 20.

SCM Power Carver

Power Carver side view

We are sorry to report that after selling the SCM Power Carver 400K and 400XS for almost 5 years, we decided to discontinue the entire product line in early January 2015 due to quality issues with their carver. Some Power Carvers were literally falling apart. We received tools back from customers with failures with only a few hours of use. Failures included the brass manifold inserts coming out, plunger caps unscrewing, plunger E-clips breaking from forcing the plunger down too hard causing misalignment with the manifold/spindle, spindle and factory new turbine assemblies falling out of the carvers and hose barbs detaching from the air tube.

SCM’s 400xs carver comes in two versions. First one is a branded Shofu Lab Air-Z dental lab handpiece. The second version looks like the entry level carver, but has the bulge on the housing like the Shofu Lab Air-Z. The second version uses the same Ney Hurricane type turbine cartridge as the entry level carver (they both use the same turbine cartridge.)

Even though we discontinued selling the Power Carver tool, it is still available from the manufacturer. For people still considering purchasing the Power Carver, here are the RPM specs for the non-Shofu Lab Air-Z: running at the original recommended pressure of 45 PSI, the RPM is about 340,000.

Since we have made it public that our findings from the bearing manufacturers stated not exceed 38 PSI for greased bearings, we have learned SCM has recently included new instructions to not exceed 37 PSI with their 400xs handpiece. We are not sure whether this is just coincidence or not but it was an interesting development that after 26 years of recommending the use of 45 PSI they now change it to 37 PSI. With this development, the new RPM at 37 PSI is 304,000.

SCORE: Form=3, Fit=2, Function=3, Quality=2, Total=10 out of 20.

Additional Power Carver Info
Photo below of SCM Power Carver with brass insert falling out and failed turbines. Also, new 400xs instructions saying never to exceed 37 PSI.

Turbo Carver

Turbo Carver

SCORE: Form=1, Fit=2, Function=2, Quality=1, Total=6 out of 20.

NSK Presto

NSK Presto

The NSK Nakanishi Inc, Presto is a grinder designed for processing small precision parts, ceramic, correction of printed circuit boards and dental labs. The Presto maximum pressure is 36 PSI producing 324,000 RPM. This tool works well but requires twisting the housing to remove the bur. The power output is good, but it is at most a very expensive handpiece.

SCORE: Form=3, Fit=4, Function=4, Quality=5, Total=16 out of 20.

Shofu Lab Air-Z

Shofu Lab Air-Z
The Shofu Lab Air-Z is a handpiece designed for the dental lab for fast, easy cutting of anatomy of porcelain and alloys in the dental industry. The Lab Air-Z maximum pressure is 36 PSI producing up to 329,000 RPM. This tool uses a small diameter turbine and lacks power. The turbine is expensive to replace.

SCORE: Form=4, Fit=4, Function=3, Quality=4, Total=15 out of 20.

Vortex XJ7

Vortex XJ7 - side view
The Vortex XJ7 by Unbridled was discontinued and replaced by the Vortex F5.

SCORE: Form=5, Fit=4, Function=5, Quality=5, Total=19 out of 20.

Vortex XJ7

Powercrafter or Paragrave or Power Pen

Powercrafter

Powercrafter was manufactured by Cirrus Industries, but was relabeled as the Power Pen from Paragrave a/k/a Paragraphics. Both companies use the same addresses and email contact.

The Powercrafter varies in weight from 60 grams to 86 grams from a sampling of our stock. We are not sure why the weight varies, but they said they are made out of stainless steel, yet a magnet did stick to the side of tool. So we are not sure about the quality of stainless steel alloy used.

Although the tool comes in two versions, the Polyimide bearing retainers for up to 400,000 RPM or the Phenolic bearing retainers for up to 500,000 RPM. We did not notice any difference in performance or speed between the 400,000 RPM and the 500,000 RPM models from Powercrafter. We did measure the actual RPM of the PI version which came in at 284,000 RPM @ 45 PSI. Powercrafter also said the Phenolic bearing retainers last 20% longer. We didn’t notice the 20% during actual carving. We, at one time, offered both for sale because the manufacturer offered both. We sold a lot of 500,000 RPM Powercrafters. The “500,000 RPM” was more of a “product name” rather than a specification.

Our main concern with the Powercrafter was delays in getting turbines. The turbine has real impellers, larger than the Turbocarver, but smaller than the Power Carver. There is wasted area around the turbine for blow-by, but the tool works reasonably well. The bearings on either side of the turbine are directly exposed to compressed air. This requires more frequent oiling (about every 20-30 minutes) because the compressed air is blowing oil out of the bearings. A better approach would have been to place the turbine impeller on the end near exhaust port and the bearings near the bur port. This would reduce the compressed air blowing the oil out of the bearings. Difficulty comes when you need to replace the worn out turbine. As shown in the photo, a 6mm wrench is required to remove the tip coverplate. You need jewelers needle nose pliers to remove the turbine/bearing assembly from the housing. The wavy washers are incredibly small and if you are not careful, you will lose them easily. The turbine will not work properly without them. Reassembly requires careful attention NOT to cross thread the tip coverplate.

SCORE: Form=4, Fit=2, Function=4, Quality=4, Total=14 out of 20.
When the Powercrafter company went out of business many years ago, a good source of parts is Ebay.
